Wuque Studio BOOG75 HE Module kit

Produktbeskrivelse

DatatilbehørTastatur og tilbehørCustom keyboardPlates & PCB fra Wuque Studio

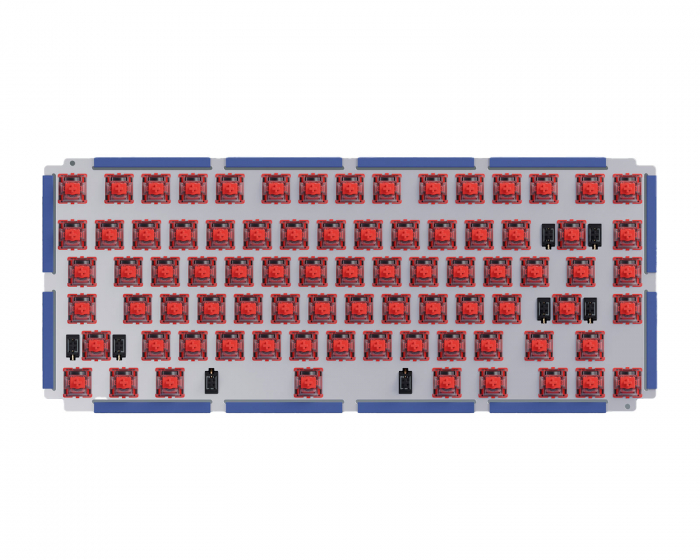

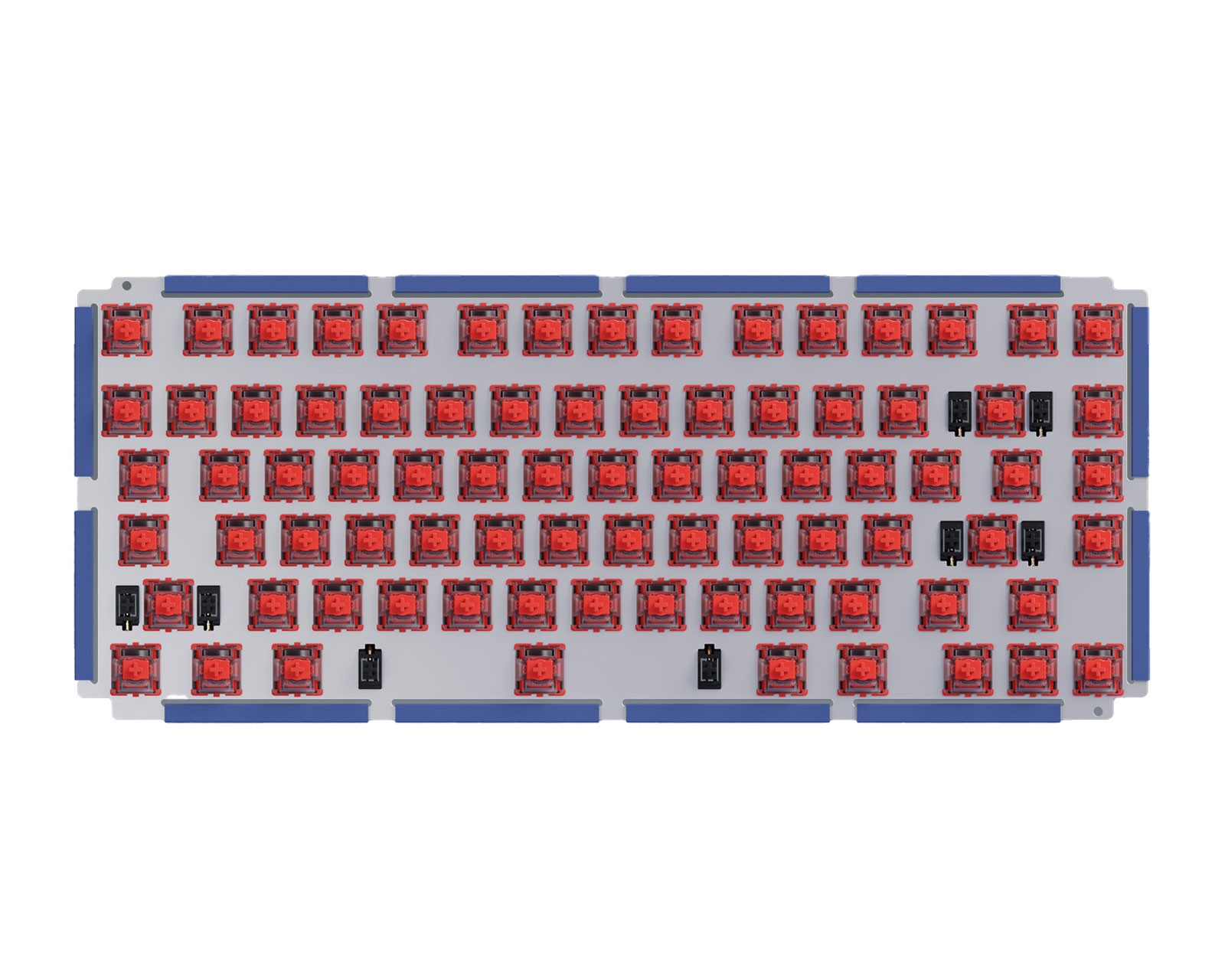

Hall effekt mod kit for Zoom75. Dette settet inkluderer brytere, plate og PCB.

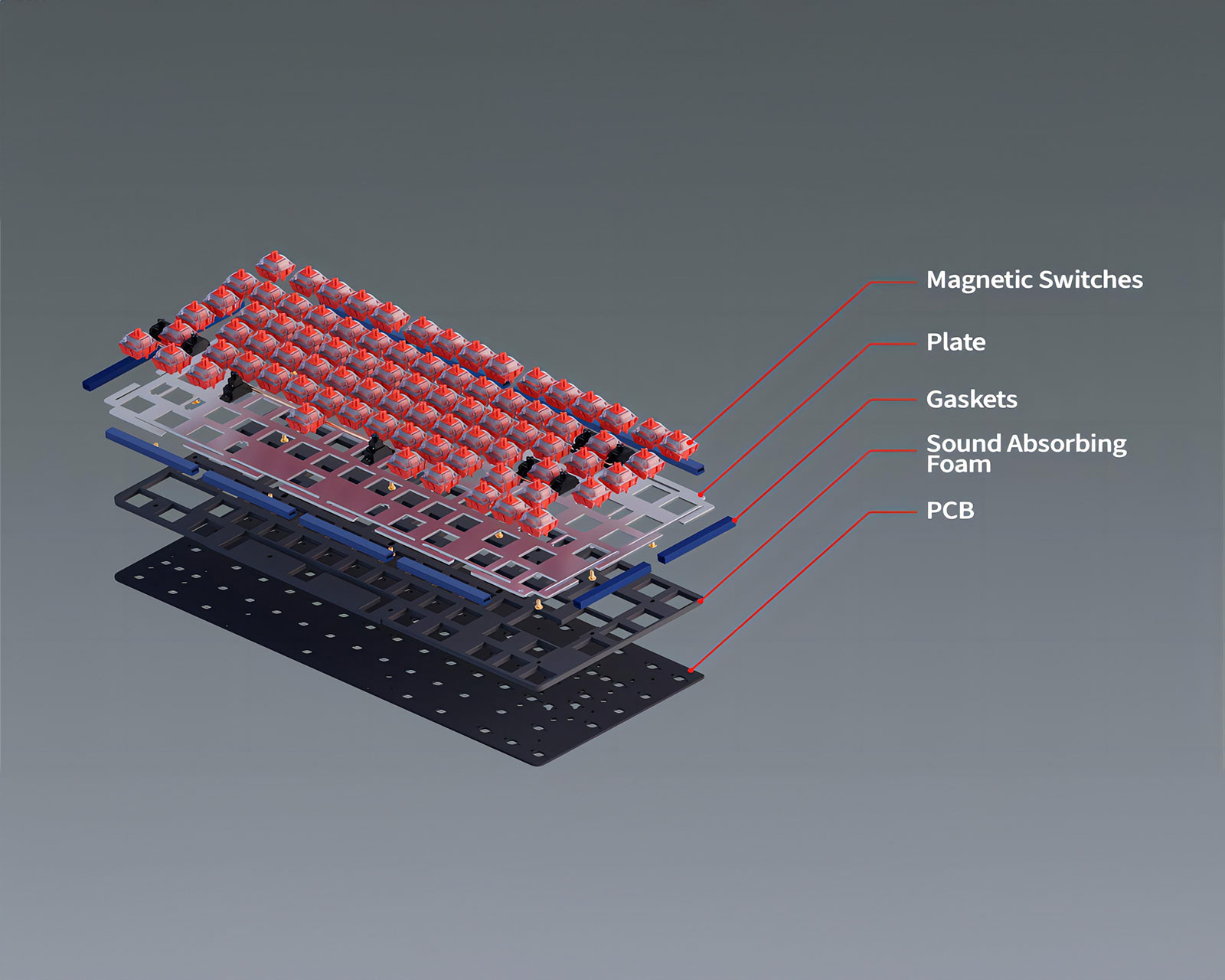

HE Module Contents:

• No keycaps, No case
• Magnetic Switch
• Alu Plate
• Poron Pad
• PCB
• Hand-lubed stabilizers

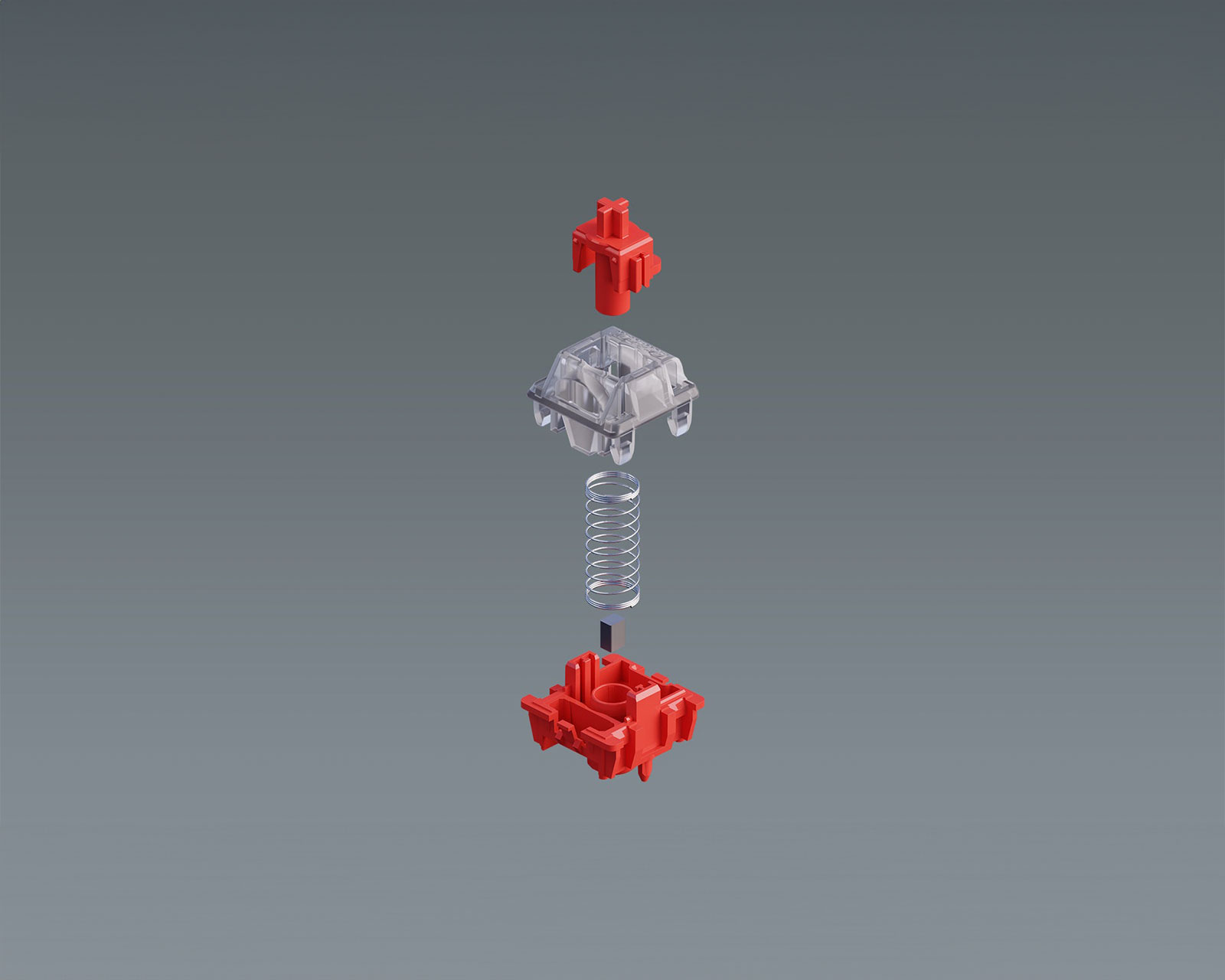

Switch Specifications:

• Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
• Initial Force:30±10gf.
• Total travel:4.0±0.2mm.
• Operation Lifetime:150,000,000 Cycles.
• Bottom Force: 50±10gf.
• Top Housing Material: Thermoplastic, Transparent
• Bottom Housing Material: Thermoplastic, Red
• Stem Material: Thermoplastic, Red
• Spring Material: Stainless steel

Highlights:

• Dual-rail structure for stability
• Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing
• Extended stem for better switch stability
• Integrated spotlight lens design, enhancing light guidance
• Every switch features a very tight housing and a perfect coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Artikkelnummer

Vårt artikkelnummer: 29769
Produsentens artikkelnr: WS-BOOG75-MODKIT
